Extended Cab Truck

Content: Vantage extended cab trucks combine the capacity and feel of a standard work truck with the sustainability and convenience of a zero-emission, low-speed vehicle. The fully enclosed, spacious interior cab seats two adults comfortably, with extra storage included behind the seats. A roomy 88.2” x 55.1” x 13.8” truck bed includes both rear and side openings, making loading and unloading a breeze. Features of these low-speed vehicle trucks include:

76.8 volt nominal system
25 mph maximum speed
Digital instrument cluster
100Ah cells - standard
163Ah cells - optional, 230Ah cells

**Optional features include front A/C and Dash Camera

Request a Quote

Standard Features

Front fog light
Headlight beam level control
Steel wheels
Power windows (front)
Power door locks (front)
Electric power steering
Cabin heating
9” Infotainment display
Backup camera
Bluetooth
LSV decal
Outside handles
DOT approved 3 point seat belts
Pedestrian warning alarm
Reverse warning alarm
Spare tire

Rear and side truck bed openings

The truck bed features rear and side openings, allowing for easy loading and unloading of materials. This design enhances accessibility by essentially making it into a flatbed LSV truck that can transport bulky or oversized cargo.

Full unibody construction

Built with full unibody construction, the truck is more durable and resistant to wear and tear, ensuring long-term performance. This structure offers enhanced strength for heavy-duty tasks in various environments.

Fully enclosed cab

The fully enclosed cab provides protection from the elements, thereby promoting driver comfort and safety in all weather conditions. This feature makes the truck ideal for year-round operation in diverse settings.

Standard-size truck bed

With a standard-size truck bed, the extended cab truck offers plenty of cargo space for transporting materials and equipment. The bed’s spacious design increases the versatility of this LSV truck with extended cab.

Electric resistance heater

With dash ventilation and defrosters

Seating for two and extra storage

The extended cab offers comfortable seating for two passengers, with additional interior storage space for tools and equipment. This combination is highly advantageous for work crews needing to carry supplies on the go.

Request a Quote

Specs & Dimensions

Passenger rating

Up to 2 Seats

Curb weight (kg/lbs)

789/1740

Vehicle dimensions mm inches

(L x W x H) 4280 x 1560 x 1850 2240 x 1400 x 350

Truck bed dimensions mm inches

(L x W x H) 2240 x 1400 x 350 88.2 x 55.1 x 13.8

Wheelbase mm/inch

2515/99.0

Max speed¹ (kph/mph)

40/25

Range² (miles)

30+ (with included 100 Ah Battery Pack)
50+ (with optional extended 163 Ah Battery Pack)

Standard battery (1 battery pack included)

Lithium Battery (100 Ah) 3,000 cell life cycles

Optional high capacity battery

Lithium Battery (163 Ah) 3,000 cell life cycles

Gross vehicle weight rating (GVWR) (kg/lbs)

1360/3000

Transmission

Single Speed

Motor

Brushless 3 phase AC induction motor: 76.8 V, 26 kW (35 hp)

Controller

76.8 V – programmable; 550 A rated

AC input range

Charges on 110 V to 240V AC (20-amp circuit is required)

Tires

165/70R14

Track (F/R) mm (inch)

1310/1310 (51.2/51.2)

Front/Rear suspension

MacPherson independent suspension/5-leaf springs

Braking system (F/R)

Disk/Drum

Speed is limited by Federal law. Maximum speed is set in the motor controller program.
Range will vary based on factors including but not limited to: temperature, terrain, driving style, road condition, vehicle payload, charge and battery lifespan. You may experience longer or shorter battery lifespan based upon application, charging regimen, depth of discharge, temperature, rest periods, type of equipment and age of battery.

Convenient and Easy Charging

Vantage’s LSV extended cab trucks feature 100% lithium electric systems, designed for charging from a standard 20-amp dedicated circuit without requiring specialized connectors. For faster charging, an optional J1772 input allows for 240V charging, offering level 2 charging times to minimize downtime and keep the vehicle ready for use. With Vantage, getting your truck on the road is easy.

Get even more out of your vehicle with these available add-ons:

Refuse hopper - 2.5 cu yard, 700 lb capacity
Front brush guard
Rear bumper with receiver - Towing capacity 1500 lbs
Tipper dump bed - 700 lbs capacity.

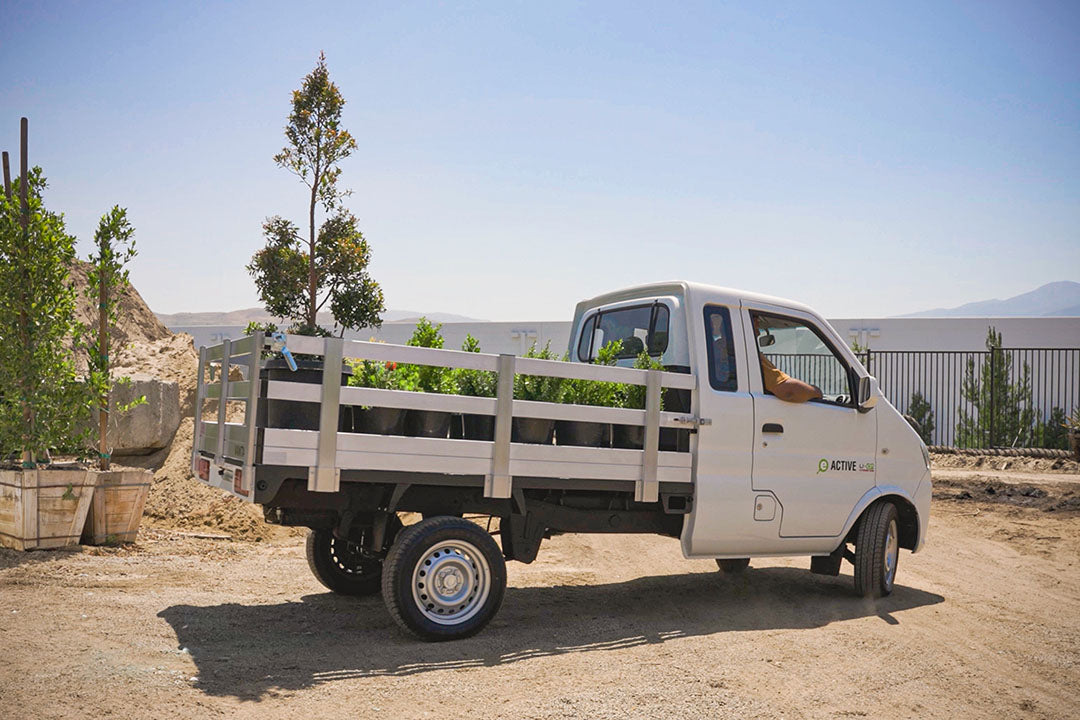

Aluminum stake bed sides - 22” & 30” heights
Toolboxes and ladder racks - Aluminum or steel
Cross bed toolbox - Lockable internal storage
Toppers for lockable storage (campers) -
Cab height, with or without ladder rack

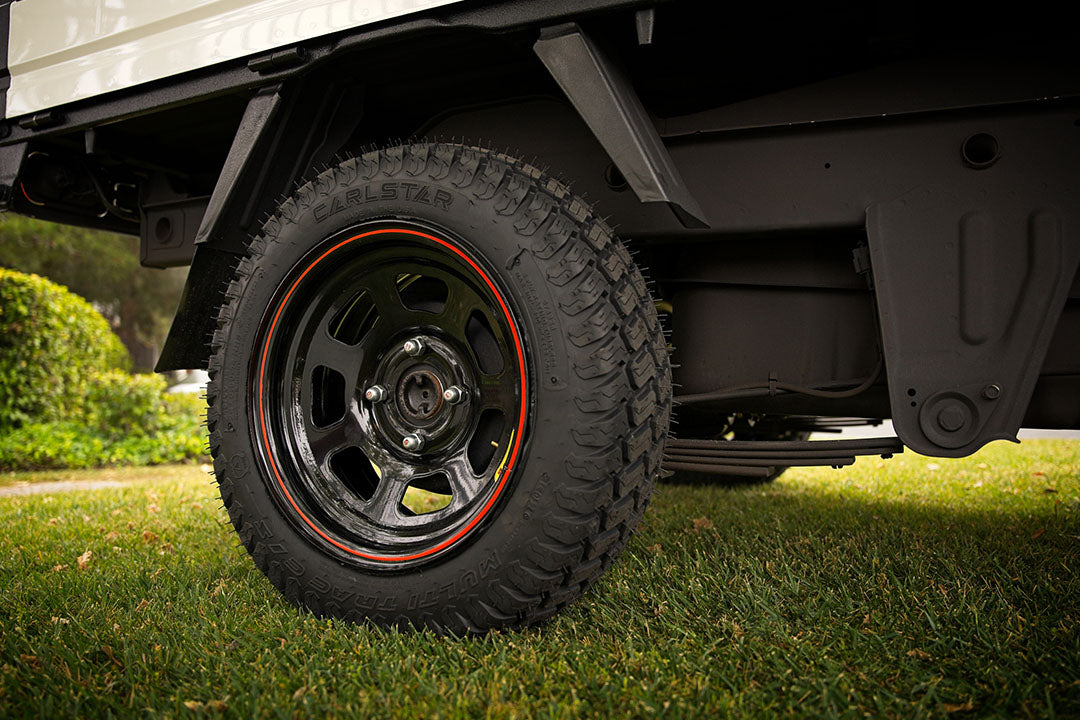

Turf rims and tires, h/d rear spring
Extended range battery pack
Front A/C
Dash camera

Explore our customizations

Zero-emission LSV

Fully electric, these zero-emissions trucks are environmentally friendly vehicles. This feature makes them an ideal choice for companies looking to reduce their carbon footprint while maintaining operational efficiency.

Extended range available

The truck comes with an optional extended range battery pack, allowing for greater distances to be covered. The 163Ah battery pack offers up to 50 miles, providing flexibility for longer operations without frequent recharging.

Customizations available

Vantage’s LSV extended cab trucks are fully customizable with a range of add-ons such as a refuse hopper, front brush guard, ladder rack, and cross-bed toolbox. These features enhance the truck’s versatility and make it adaptable for a wide variety of tasks and industries.

FAQs

Find answers to common questions about our vehicles, customization options,  and purchase process.

Can I customize my vehicle?

Our vehicles offer a diverse selection of factory options, encompassing various features such as battery pack capacities, tipper dump capabilities, trash hopper arrangements, turf tires, ladder rack installations, aluminum stake beds, tool boxes, and many additional options and accessories.

Can I charge from a standard outlet?

Yes, our vehicles are compatible with a standard 110-volt wall outlet or can be charged on 220 volts with an appropriate adapter. Vantage recommends charging from a dedicated circuit with a 20 amp breaker as the on-board charger draws over 15 amps when in use.

Are they street legal?

Yes, our electric vehicles are street legal in most states on roads posted at 35 MPH or less, and reach a maximum speed of 25 MPH. Check your local laws and regulations for Low Speed Vehicles.

How long do the electric vehicles take to charge?

Using a standard 110-volt outlet, charging typically takes approximately 6 to 7 hours. Charging from an EV charging point at 240v with the optional J1772 package will cut charge times by 40%.

How far can I travel on a single charge?

With our standard 100 Amp battery pack, our vehicles can travel approximately 35 miles, depending on factors such as driving habits, road conditions, weather, and vehicle load. Battery pack options are available that can increase the range to approximately 75 miles.

What is the warranty?

Our standard warranty covers the complete vehicle for 12 months or 10,000 miles, whichever occurs first. The motor and controller are backed by a 2-year warranty, while the battery pack carries a 30-month warranty from the shipping date, with the final 18 months prorated.

How can I purchase?

Feel free to reach out to us by calling 951-356-0759 and asking for our sales department, or you can also send us an email at sales@vantagevehicle.com.
