Aluminum Stake Bed Truck

    • Aluminum Stake Bed Truck

    The aluminum stake bed truck from Vantage is designed for heavy-duty usage with a focus on durability and versatility. This slow-speed vehicle—available in either gas or electric models—features fold-down sides for easy loading and unloading, so it can be deployed for a wide range of tasks in various industries. Its key features include:

    • 22 or 30 inches tall

    • Full aluminum construction

    • Protected against rust and degradation

    *The Aluminum Stake Bed Truck comes in Electric or Gas options

    Request a Quote

    Standard Features

    • Front fog light
    • Headlight beam level control
    • Steel wheels
    • Power windows (front)
    • Power door locks (front)
    • Electric power steering
    • Cabin heating
    • 9” Infotainment display
    • Backup camera
    • Bluetooth
    • LSV decal
    • Outside handles
    • DOT approved 3 point seat belts
    • Pedestrian warning alarm
    • Reverse warning alarm
    • Spare tire

    Fully enclosed cab

    The high-quality enclosure provides drivers and passengers with protection from the elements, ensuring comfort and safety in all-weather conditions. As a result, the vehicle is suitable for year-round use in various environments.

    Extended-range electric vehicle

    The truck is equipped with a high-capacity battery, reducing the need for frequent recharges. This allows for longer operational hours, which can boost your business’s productivity and efficiency.

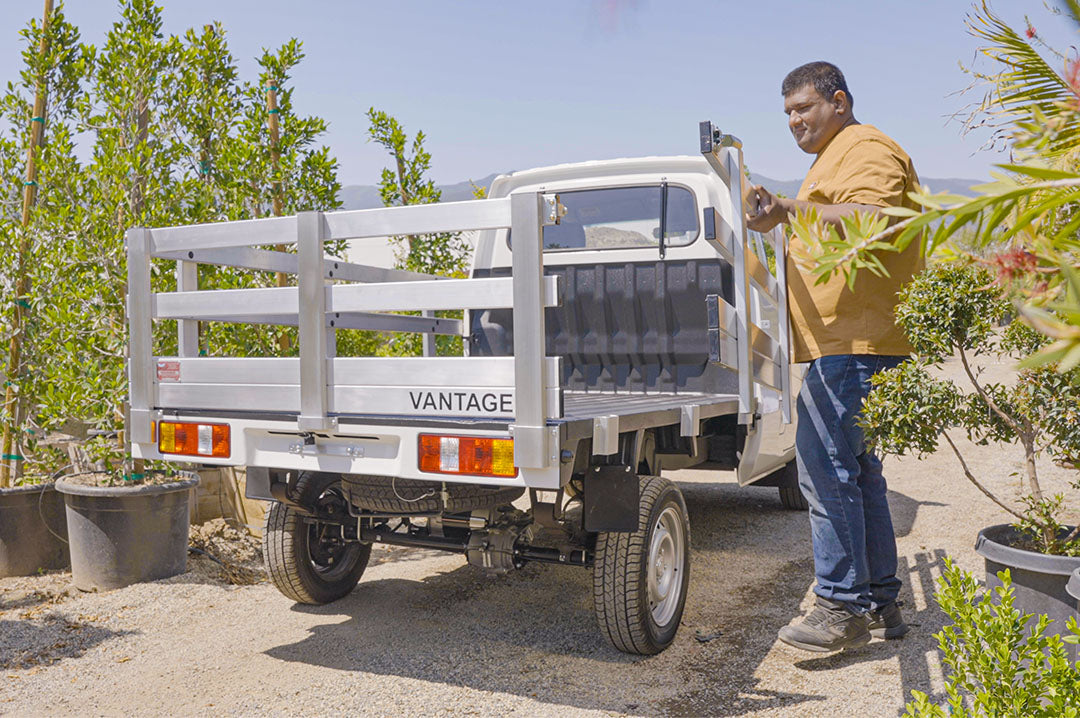

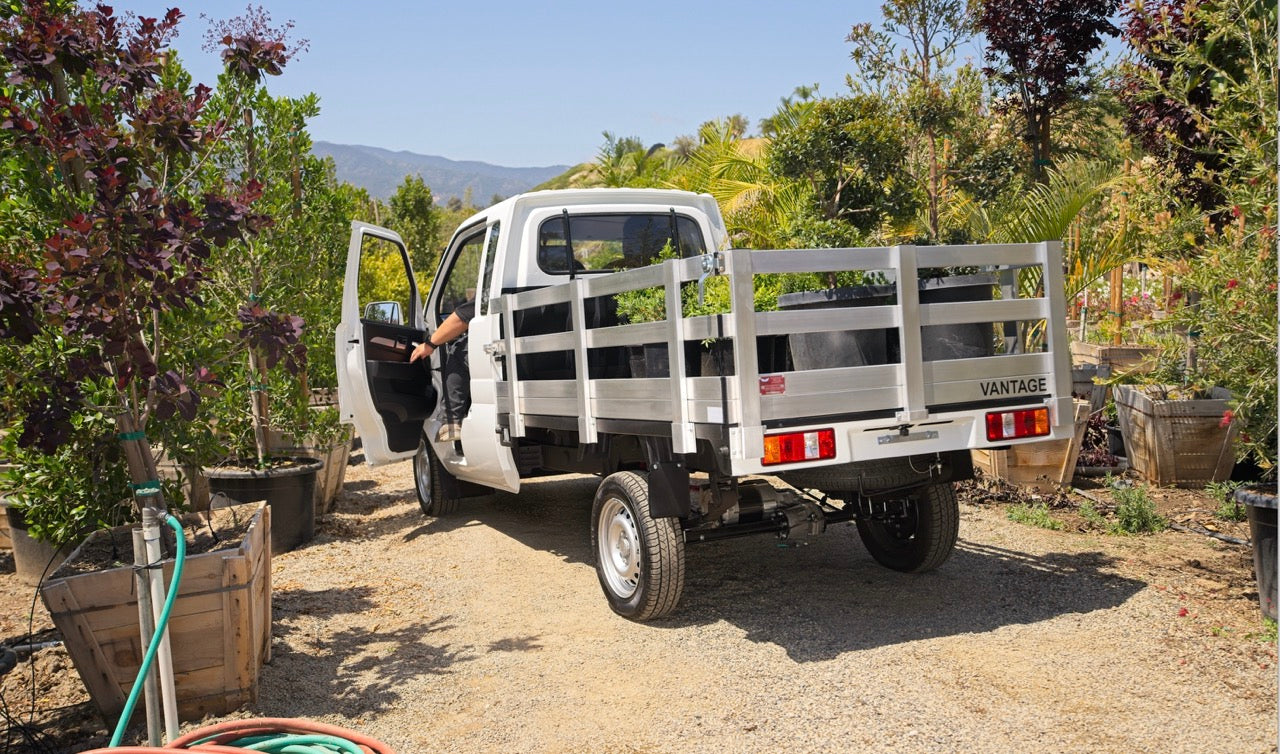

    Aluminum stake bed

    These offer fold-down tailgates, allowing for quick and easy access to the cargo area for loading and unloading. This feature increases versatility for various job tasks, which makes the truck adaptable to multiple industries.
    Aluminum Stake Bed Truck
    Request a Quote

    Specs & Dimensions

    Passenger rating
    Up to 2 Seats
    Curb weight (kg/lbs)
    859/1894
    Vehicle dimensions mm inches
    (L x W x H) 4000 x 1560 x 1840 157.5 x 61.4 x 72.4
    Truck bed dimensions mm inches
    (L x W x H) 1390 x 1400 x 430 54.7 x 55.1 x 16.9
    Wheelbase mm/inch
    2760/108.7
    Max speed1 (kph/mph)
    40/25
    Range2 (miles)

    30+ (with included 100 Ah Battery Pack)
    50+ (with optional extended 163 Ah Battery Pack)
    Standard battery (1 battery pack included)
    Lithium Battery (100 Ah) 3,000 cell life cycles
    Optional high capacity battery
    Lithium Battery (163 Ah) 3,000 cell life cycles
    Gross vehicle weight rating (GVWR) (kg/lbs)
    1360/3000
    Transmission
    Single Speed
    Motor
    Brushless 3 phase AC induction motor: 76.8 V, 26 kW (35 hp)
    Controller
    76.8 V – programmable; 550 A rated
    AC input range
    Charges on 110 V to 240V AC (20-amp circuit is required)
    Tires
    165/70R14
    Track (F/R) mm (inch)
    1310/1310 (51.2/51.2)
    Front/Rear suspension
    MacPherson independent suspension/5-leaf springs
    Braking system (F/R)
    Disk/Drum
    1. Speed is limited by Federal law. Maximum speed is set in the motor controller program.
    2. Range will vary based on factors including but not limited to: temperature, terrain, driving style, road condition, vehicle payload, charge and battery lifespan. You may experience longer or shorter battery lifespan based upon application, charging regimen, depth of discharge, temperature, rest periods, type of equipment and age of battery.

    Extra Storage Capacity Truck Bed

    The extra storage capacity truck bed on Vantage vehicles offers a spacious, full-sized cargo area for transporting larger loads. It’s designed for maximum utility that can be highly useful for businesses that frequently move tools, equipment, or materials from one place to another. The bed’s durable construction ensures that it can withstand heavy-duty use while maintaining easy access for loading and unloading. Your business will be able to leverage the benefits of a gas or electric LSV truck with aluminum stake bed that enables the effortless transport of valuable cargo.

    Get even more out of your Aluminum Stake Bed with these available add-ons:

    • Extended Range Battery Pack - 230 Ah Cells
    • Front guard bumper
    • Front A/C
    • Dash camera
    • 1500lb towing with optional rear bumper
    Explore Our Customizations

    Fully enclosed interior

    The interior of Vantage’s aluminum stake bed trucks offers superior protection from the elements, ensuring comfort and safety for both driver and passengers. This feature makes the truck suitable for all-weather and all-season use, providing a secure and comfortable workspace regardless of the environment.

    Standard truck features

    Vantage’s aluminum stake bed trucks come equipped with standard features like A/C, power windows, power steering, cabin heating, glove box, and Bluetooth connectivity. Other safety and convenience features include a fog light, outside handles, steel wheels, and headlight beam level control.

    Convenient and easy charging

    Vantage’s electric aluminum stake bed trucks utilize a 100% lithium electric charging system that operates on a standard 20-amp circuit, making charging simple and accessible. For faster charging, an optional J1772 input is available, allowing for convenient, level 2 charging to minimize downtime and maximize productivity.

    FAQs

    Find answers to common questions about our vehicles, customization options,
and purchase process.

    Can I customize my vehicle?

    Our vehicles offer a diverse selection of factory options, encompassing various features such as battery pack capacities, tipper dump capabilities, trash hopper arrangements, turf tires, ladder rack installations, aluminum stake beds, tool boxes, and many additional options and accessories.

    Can I charge from a standard outlet?

    Yes, our vehicles are compatible with a standard 110-volt wall outlet or can be charged on 220 volts with an appropriate adapter. Vantage recommends charging from a dedicated circuit with a 20 amp breaker as the on-board charger draws over 15 amps when in use.

    Are they street legal?

    Yes, our electric vehicles are street legal in most states on roads posted at 35 MPH or less, and reach a maximum speed of 25 MPH. Check your local laws and regulations for Low Speed Vehicles.

    How long do the electric vehicles take to charge?

    Using a standard 110-volt outlet, charging typically takes approximately 6 to 7 hours. Charging from an EV charging point at 240v with the optional J1772 package will cut charge times by 40%.

    How far can I travel on a single charge?

    With our standard 100 Amp battery pack, our vehicles can travel approximately 35 miles, depending on factors such as driving habits, road conditions, weather, and vehicle load. Battery pack options are available that can increase the range to approximately 75 miles.

    What is the warranty?

    Our standard warranty covers the complete vehicle for 12 months or 10,000 miles, whichever occurs first. The motor and controller are backed by a 2-year warranty, while the battery pack carries a 30-month warranty from the shipping date, with the final 18 months prorated.

    How can I purchase?

    Feel free to reach out to us by calling 951-356-0759 and asking for our sales department, or you can also send us an email at sales@vantagevehicle.com.
