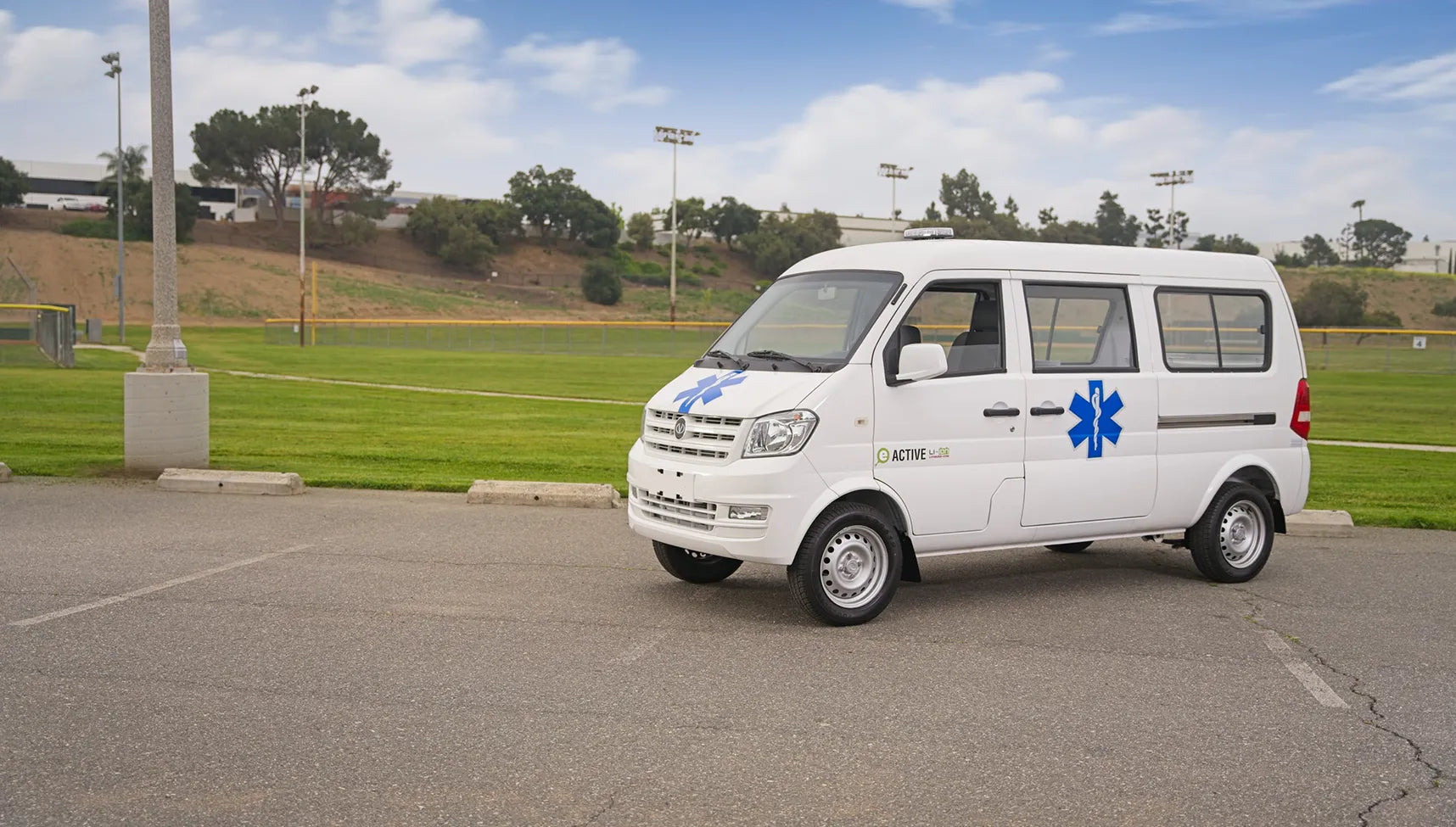

Ambulance Kit

e-Active:

Seats 1-6 | 150.4” x 62.8” x 74.0”

    • Ambulance Kit

    Vantage’s ambulance vehicles are designed to meet the needs of emergency medical services, with a number of critical features to ensure efficiency and safety when treating and transporting the patient. These electric or gas-powered ambulances are customizable to suit various medical transport needs and come equipped with a wide array of essential medical and safety components, including:

    • First aid/medical carts for storage
    • Rear cabinet
    • Fire extinguisher
    • Patient cot
    • Attendant/EMT seating
    • Exterior medical decal
    • Siren/PA unit
    • Emergency warning strobe
    • Easy-to-clean flooring

    *The Ambulance Kit comes in Electric or Gas options

    Request a Quote

    Standard Features

    • Front fog light
    • Headlight beam level control
    • Steel wheels
    • Power windows (front)
    • Power door locks (front)
    • Electric power steering
    • Cabin heating
    • 9” Infotainment display
    • Backup camera
    • Bluetooth
    • LSV decal
    • Outside handles
    • DOT approved 3 point seat belts
    • Pedestrian warning alarm
    • Reverse warning alarm
    • Spare tire

    Rear storage

    The rear cabinet offers ample space for storing essential medical equipment and supplies. It ensures easy organization, allowing medical teams to access necessary items quickly in emergency situations.

    EMT seating

    The attendant/EMT seating provides a dedicated and comfortable area for medical personnel to monitor and assist the patient during transport. This seating arrangement enhances the efficiency and safety of medical interventions while on the move.

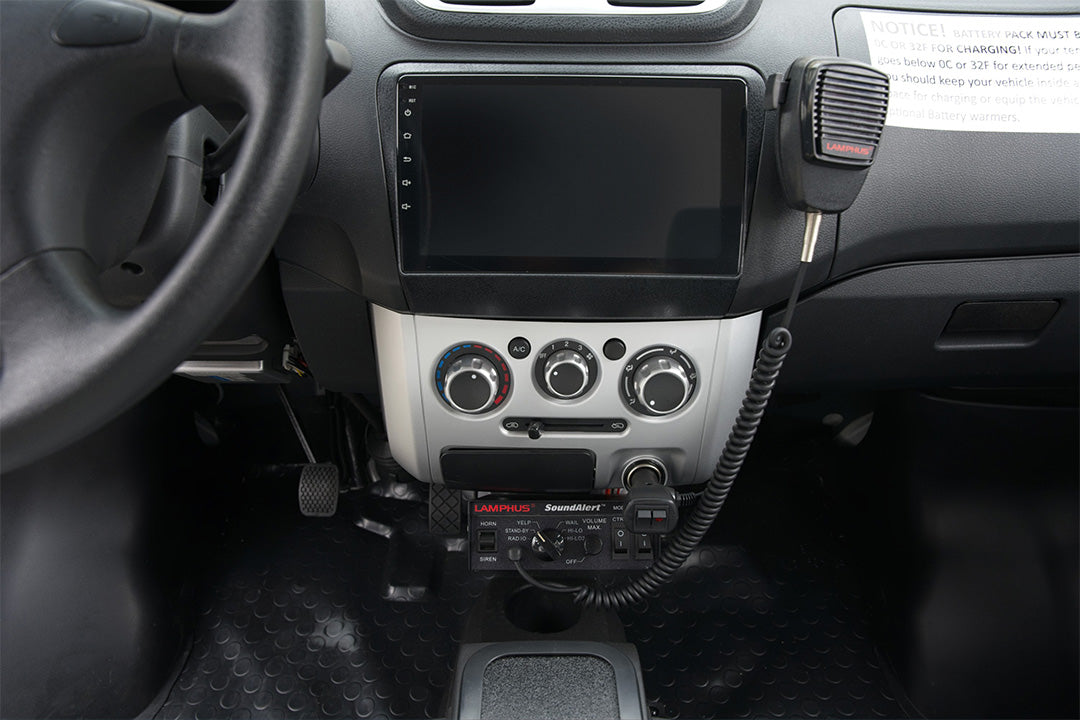

    Siren and emergency lights

    The siren/PA unit, combined with emergency warning strobes, ensures that the ambulance is highly visible and can quickly alert surrounding vehicles to make way. These features are critical for navigating traffic and reaching destinations swiftly during emergencies.

    Easy-to-clean flooring

    The ambulance is equipped with easy-to-clean flooring that is ideal for maintaining hygiene in demanding medical environments. It allows for quick sanitization between uses, ensuring the ambulance remains a clean and safe space for patient care.

    Patient cot

    These ambulance vehicles include a durable patient cot for secure, safe, and comfortable patient transport. Designed for ease of use, it allows medical personnel to stabilize the patient effectively while en route to medical facilities.

    Exterior Decals

    Ambulance decals can be added to the front and sides of the vehicle.
    Ambulance Kit
    Request a Quote

    Specs & Dimensions

    Passenger rating
    Up to 6 Seats
    Curb weight (kg/lbs)
    949/2094
    Vehicle dimensions mm inches
    (L x W x H) 3820 x 1595 x 1880 150.4 x 62.8 x 74.0
    Wheelbase mm/inch
    2760/108.7
    Max speed1 (kph/mph)
    40/25
    Range2 (miles)

    30+ (with included 100 Ah Battery Pack)
    50+ (with optional extended 163 Ah Battery Pack)
    Standard battery (1 battery pack included)
    Lithium Battery (100 Ah) 3,000 cell life cycles
    Optional high capacity battery
    Lithium Battery (163 Ah) 3,000 cell life cycles
    Gross vehicle weight rating (GVWR) (kg/lbs)
    1360/3000
    Transmission
    Single Speed
    Motor
    Brushless 3 phase AC induction motor: 76.8 V, 26 kW (35 hp)
    Controller
    76.8 V – programmable; 550 A rated
    AC input range
    Charges on 110 V to 240V AC (20-amp circuit is required)
    Tires
    165/70R14
    Track (F/R) mm (inch)
    1310/1310 (51.2/51.2)
    Front/Rear suspension
    1310/1310 (51.2/51.2)
    Braking system (F/R)
    Disk/Drum
    1. Speed is limited by Federal law. Maximum speed is set in the motor controller program.
    2. Range will vary based on factors including but not limited to: temperature, terrain, driving style, road condition, vehicle payload, charge and battery lifespan. You may experience longer or shorter battery lifespan based upon application, charging regimen, depth of discharge, temperature, rest periods, type of equipment and age of battery.

    Available in Gas or Electric

    Vantage ambulance vehicles are offered in both gas-powered and electric models. Electric ambulance vehicles are ideal for eco-conscious organizations, offering zero emissions and quiet operation. Gas-powered ambulances, on the other hand, provide excellent power and longer range, making them suitable for extended shifts or locations with limited charging infrastructure. Both options ensure reliable performance for medical and emergency use.

    Get even more out of your Ambulance Kit with these available add-ons:

    • Extended Range Battery Pack - 230 Ah Cells
    • First Aid/Med storage
    • Patient cot
    • Exterior medical decal
    • Siren/PA system
    • Front A/C
    • Dash camera
    Explore Our Customizations

    Convenient and easy charging

    Electric ambulance vehicles from Vantage charge easily with a standard 20-amp circuit, requiring no specialized equipment. The optional J1772 inputs allow for faster, level 2 charging, for rapid deployment in emergency situations.

    Ambulance features

    Each gas or electric medical vehicle includes essential features such as exterior medical decals, a siren/PA unit, an emergency warning strobe, and other amenities that our competitors often charge extra for. You also have access to Vantage’s high-quality ambulance kit vehicle add-ons.

    Durable unibody construction

    Vantage’s ambulance LSVs are built with an all-metal unibody construction. This makes our vehicles more durable than typical ambulance carts as well as capable of withstanding the demands of daily emergency use. This rugged design ensures long-term reliability, even in harsh conditions.

    FAQs

    Find answers to common questions about our vehicles, customization options,
and purchase process.

    Can I customize my vehicle?

    Our vehicles offer a diverse selection of factory options, encompassing various features such as battery pack capacities, tipper dump capabilities, trash hopper arrangements, turf tires, ladder rack installations, aluminum stake beds, tool boxes, and many additional options and accessories.

    Can I charge from a standard outlet?

    Yes, our vehicles are compatible with a standard 110-volt wall outlet or can be charged on 220 volts with an appropriate adapter. Vantage recommends charging from a dedicated circuit with a 20 amp breaker as the on-board charger draws over 15 amps when in use.

    Are they street legal?

    Yes, our electric vehicles are street legal in most states on roads posted at 35 MPH or less, and reach a maximum speed of 25 MPH. Check your local laws and regulations for Low Speed Vehicles.

    How long do the electric vehicles take to charge?

    Using a standard 110-volt outlet, charging typically takes approximately 6 to 7 hours. Charging from an EV charging point at 240v with the optional J1772 package will cut charge times by 40%.

    How far can I travel on a single charge?

    With our standard 100 Amp battery pack, our vehicles can travel approximately 35 miles, depending on factors such as driving habits, road conditions, weather, and vehicle load. Battery pack options are available that can increase the range to approximately 75 miles.

    What is the warranty?

    Our standard warranty covers the complete vehicle for 12 months or 10,000 miles, whichever occurs first. The motor and controller are backed by a 2-year warranty, while the battery pack carries a 30-month warranty from the shipping date, with the final 18 months prorated.

    How can I purchase?

    Feel free to reach out to us by calling 951-356-0759 and asking for our sales department, or you can also send us an email at sales@vantagevehicle.com.
