Electric Passenger Window Van

e-Active:

Our 100% Lithium electric vehicles

Seats 1-6 | 150.4” x 62.8” x 74.0”

    • Electric Passenger Window Van

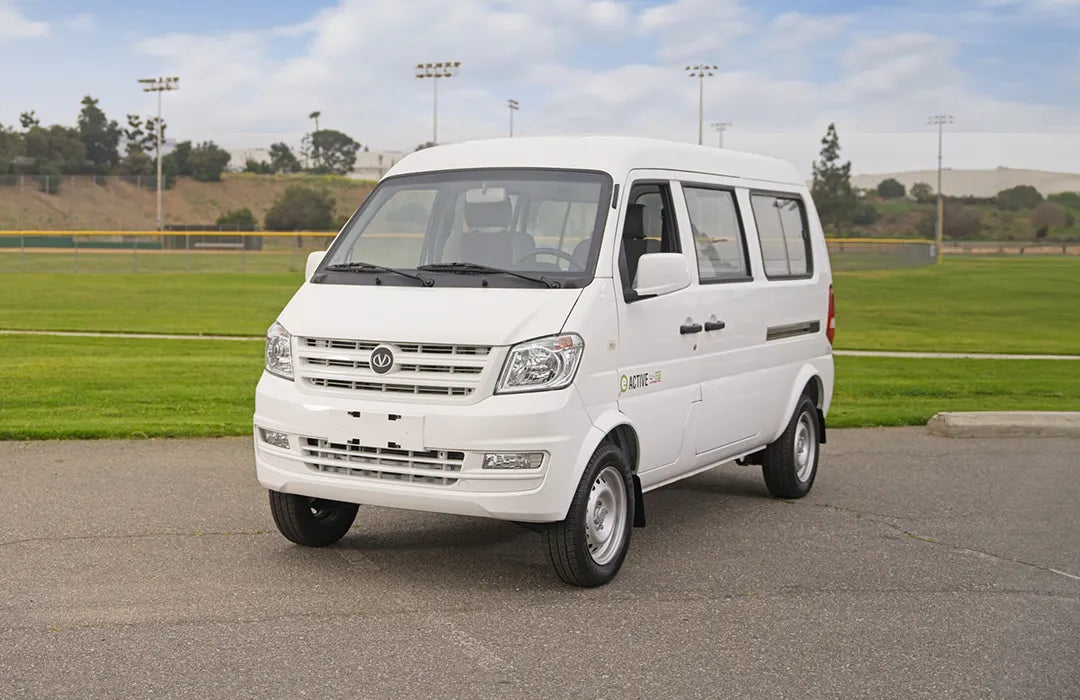

    The Vantage electric passenger window van is designed for comfort and efficiency, seating up to six passengers while providing ample space for cargo. Powered by a 76.8-volt system and an 18 hp AC induction motor, this is a vehicle that offers smooth, quiet operation for various transportation needs. Vantage’s high-quality electric passenger van comes with a suite of useful features, such as:

    • 76.8 volt nominal system

    • Brushless 3 phase AC induction motor: 76.8 V, 26 kW (35 hp)

    • Windshield wipers and washers

    • A fully enclosed cab with standard heating and ventilation

    • Windows in sliding doors, rear 1/4 windows and rear door

    **Optional features include front A/C and Dash Camera

    Request a Quote

    Standard Features

    • Front fog light
    • Headlight beam level control
    • Steel wheels
    • Power windows (front)
    • Power door locks (front)
    • Electric power steering
    • Cabin heating
    • 9” Infotainment display
    • Backup camera
    • Bluetooth
    • LSV decal
    • Outside handles
    • DOT approved 3 point seat belts
    • Pedestrian warning alarm
    • Reverse warning alarm
    • Spare tire

    Sliding doors on both sides

    Sliding doors on both sides allow easy access for passengers and cargo loading. This feature improves convenience and efficiency in tight spaces or busy environments.

    Halogen headlamps and fog lamps

    Equipped with halogen headlamps and fog lamps, the electric window van provides clear visibility in low-light and adverse weather conditions. This enhances safety during night-time or foggy operations.

    Electric resistance heater

    With dash ventilation and defrosters

    Lockable Doors

    Seating for up to six

    The electric LSV passenger van offers seating for up to six passengers, ensuring plenty of room for group transport. The extra seating makes the vehicle an excellent option for shuttle services, campuses, and commercial facilities.

    Rear Taillamps
    Electric Passenger Window Van
    Request a Quote

    Specs & Dimensions

    Passenger rating
    Up to 6 Seats
    Curb weight (kg/lbs)
    949/2094
    Vehicle dimensions mm inches
    (L x W x H) 3820 x 1595 x 1880 150.4 x 62.8 x 74.0
    Wheelbase mm/inch
    2760/108.7
    Max speed1 (kph/mph)
    40/25
    Range2 (miles)

    30+ (with included 100 Ah Battery Pack)
    50+ (with optional extended 163 Ah Battery Pack)
    Standard battery (1 battery pack included)
    Lithium Battery (100 Ah) 3,000 cell life cycles
    Optional high capacity battery
    Lithium Battery (163 Ah) 3,000 cell life cycles
    Gross vehicle weight rating (GVWR) (kg/lbs)
    1360/3000
    Transmission
    Single Speed
    Motor
    Brushless 3 phase AC induction motor: 76.8 V, 26 kW (35 hp)
    Controller
    76.8 V – programmable; 550 A rated
    AC input range
    Charges on 110 V to 240V AC (20-amp circuit is required)
    Tires
    165/70R14
    Track (F/R) mm (inch)
    1310/1310 (51.2/51.2)
    Front/Rear suspension
    MacPherson independent suspension/5-leaf springs
    Braking system (F/R)
    Disk/Drum
    1. Speed is limited by Federal law. Maximum speed is set in the motor controller program.
    2. Range will vary based on factors including but not limited to: temperature, terrain, driving style, road condition, vehicle payload, charge and battery lifespan. You may experience longer or shorter battery lifespan based upon application, charging regimen, depth of discharge, temperature, rest periods, type of equipment and age of battery.

    Convenient and Easy Charging

    This electric LSV window van from Vantage is powered by a 100% lithium electric system designed for simple charging using a standard 20-amp dedicated circuit, without needing specialized connectors. For faster recharging, the optional J1772 charging input allows for 240V connections, reducing downtime. This flexible charging setup ensures the van is ready for service with minimal hassle, any time.

    Get even more out of your Electric Passenger Window Van with these available add-ons:

    • Extended Range Battery Pack - 230 Ah Cells
    • Cargo divider
    • Mobile first aid unit options
    • Solar panels
    • Ladder racks
    • Front A/C
    • Dash camera
    Explore Our Customizations

    Expansive rear cargo area

    The electric passenger van features a spacious rear cargo area, offering ample room for equipment, luggage, or additional supplies. This makes the vehicle well suited for both passenger and cargo transportation.

    Extended range available

    The standard 100Ah battery pack provides a range of up to 30 miles, with an optional 163Ah extended range pack boosting the range to around 50 miles. This ensures the LSV passenger van can handle longer routes with fewer stops for recharging.

    Customizations available

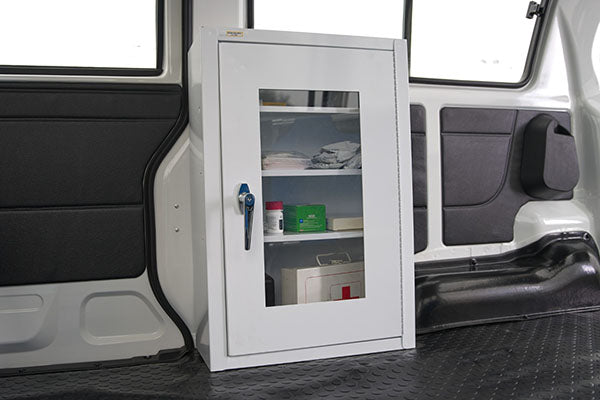

    The electric van offers a range of customization options: cargo dividers, first aid/med storage, solar panels, and more. These add-ons make the electric LSV passenger van adaptable for various industries, from medical transport to commercial services.

    FAQs

    Find answers to common questions about our vehicles, customization options,
and purchase process.

    Can I customize my vehicle?

    Our vehicles offer a diverse selection of factory options, encompassing various features such as battery pack capacities, tipper dump capabilities, trash hopper arrangements, turf tires, ladder rack installations, aluminum stake beds, tool boxes, and many additional options and accessories.

    Can I charge from a standard outlet?

    Yes, our vehicles are compatible with a standard 110-volt wall outlet or can be charged on 220 volts with an appropriate adapter. Vantage recommends charging from a dedicated circuit with a 20 amp breaker as the on-board charger draws over 15 amps when in use.

    Are they street legal?

    Yes, our electric vehicles are street legal in most states on roads posted at 35 MPH or less, and reach a maximum speed of 25 MPH. Check your local laws and regulations for Low Speed Vehicles.

    How long do the electric vehicles take to charge?

    Using a standard 110-volt outlet, charging typically takes approximately 6 to 7 hours. Charging from an EV charging point at 240v with the optional J1772 package will cut charge times by 40%.

    How far can I travel on a single charge?

    With our standard 100 Amp battery pack, our vehicles can travel approximately 35 miles, depending on factors such as driving habits, road conditions, weather, and vehicle load. Battery pack options are available that can increase the range to approximately 75 miles.

    What is the warranty?

    Our standard warranty covers the complete vehicle for 12 months or 10,000 miles, whichever occurs first. The motor and controller are backed by a 2-year warranty, while the battery pack carries a 30-month warranty from the shipping date, with the final 18 months prorated.

    How can I purchase?

    Feel free to reach out to us by calling 951-356-0759 and asking for our sales department, or you can also send us an email at sales@vantagevehicle.com.

    Request a Quote

    Customize Your Vehicle

    Customize your Vantage Vehicle and create the vehicle that fits your business needs.

    Customization Options
